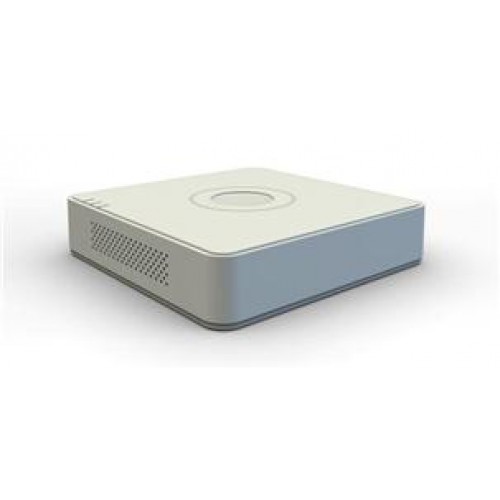

DS-7104/7108/7116HGHI-F1
ยี่ห้อ:
Hikvision
รหัสสินค้า:
DS-7104
พร้อมใช้งาน:
2 - 3 Days
น้ำหนัก:
0.00kg
ขนาด:
0.00cm x 0.00cm x 0.00cm
ราคา:
0.00บาท
Turbo HD DVR
• H.264 /H.264+& Dual-stream video compression
• Support both HD-TVI /analog and AHD cameras with
adaptive access
• Full channel recording at up to 1080P lite resolution
• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support 4/8/16-ch synchronous playback at 720P resolution
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | | | 1-ch |
| Video Compression: | | | H.264,H.264+ |
| Analog and HD-TVI video input: | | | 16-ch BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | | | Support HDTVI input: 1080p/25Hz, 1080p/30Hz, 720P/25Hz, 720P/30Hz, Support AHD input: 720P/25Hz, 720P/30Hz, support CVBS input |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | ||
| HDMI/VGA Output: | | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | | | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | | | Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Video Bit Rate: | | | 32 Kbps ~ 4 Mbps |
| Stream Type: | | | Video/Video&Audio |
| Audio Output: | | | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | | | 64kbps |
| Dual Stream: | | | Support |
| Playback Resolution: | | | 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Synchronous Playback: | | | 16-ch |
| Network management | ||
| Remote connections: | | | 128 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver | ||
| Interface Type: | | | 1 SATA Interface |
| Capacity: | | | Up to 6 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | | | 2 USB 2.0 Interfaces |
| General | ||
| Power Supply: | | | 12V DC |
| Consumption: | | | ≤20W(without hard disks) |
| Working Temperature: | | | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | | | 10% ~ 90% |
| Dimensions: | | | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) |
| Weight: | | | ≤ 1.2 kg / 2.6 lb(without hard disks) |
